Dense Phase Conveying Systems
- Customers
Trusted by India's Industrial Leaders
- 1. Material Properties & Conveyability
Dense phase is not universally applicable — correct selection depends on thorough material characterisation.
Dense phase conveying is not universally applicable to all bulk powders. Correct system selection and reliable long-term operation depend on thorough characterisation of the bulk material before any system is specified. The following properties are assessed during SaveEco’s pre-engineering site survey.
- 1.1 Key Material Properties for Dense Phase System Design
| Property | Significance | Design Implication |
|---|---|---|
| Particle size (d₅₀) | Governs conveying velocity, plug stability, separator sizing | Fine powders (<100 µm) typically suit dense phase; coarser fractions need higher air volumes |
| Bulk density | Determines mass per vessel charge and cycle time | Low bulk density requires larger vessel volumes for equivalent throughput |
| Particle density | Affects settling velocity and slug formation dynamics | High particle density aids plug formation at low conveying velocity |
| Abrasiveness (Mohs) | Drives pipe material and bend geometry selection | Fly ash, alumina: ceramic-lined or hardened bends at every direction change |
| Cohesiveness | Affects vessel discharge reliability and pipeline deaeration | Cohesive materials may require aeration pads in vessel cone or bypass line design |
| Moisture content | Controls caking risk in pipeline and vessel | Compressed air dewpoint typically ≤ −20°C PDP for hygroscopic materials (cement, gypsum) |
| Explosibility (Kst) | Determines ATEX equipment class and earthing requirements | Coal dust, certain chemical powders: ATEX-rated vessels, earthing, and explosion relief mandatory |
- 1.2 Reference Material Data — Dense Phase Design Considerations
| Material | Typical d₅₀ | Dense Phase Design Consideration |
|---|---|---|
| Fly Ash — Class F | 10 – 30 µm | Excellent plug-forming; bag filter mandatory; hardened bends required |
| Portland Cement (OPC/PPC) | 15 – 45 µm | Dense phase mandatory >200 m; air dewpoint ≤ −20°C PDP; abrasion-resistant bends |
| Limestone Powder | 20 – 75 µm | Moderate abrasion; stable plug flow; standard hardened bends adequate |
| Calcined Alumina | 80 – 150 µm | Mohs 9 — most abrasive industrial powder; ceramic-lined bends mandatory |
| Pulverised Coal | 50 – 300 µm | ATEX Zone 20/21 mandatory; earthed pipework; explosion relief on receivers |
| Gypsum Powder | 30 – 100 µm | Hygroscopic — air drying required; good plug-forming characteristics |
| Carbon Black | 0.1 – 5 µm | Enclosed system with HEPA-grade filtration; electrostatic charge management |
| Zinc Oxide / Metal Oxides | 0.1 – 10 µm | Health hazard — sealed system mandatory; sub-micron filter at all vent points |
| d₅₀ values are representative. Site-specific particle size analysis is mandatory for final dense phase system design. | ||
- 2. System Configurations
Four principal configurations — selection driven by throughput, distance, and material characteristics.
SaveEco, in partnership with STAG AG Switzerland, offers four principal dense phase configurations and one specialist pipeline design. Configuration selection is determined by the required conveying capacity, pipeline length, operating pressure requirements, and the bulk material characteristics established during the pre-engineering assessment.
Configuration 2.1
Twin (Tandem) Vessel Conveying
Two pressure vessels operate in alternating fill-and-discharge cycles, enabling near-continuous material flow. While one vessel discharges into the pipeline, the other fills from the upstream feeder — eliminating the dead time of single-vessel batch operation and maximising hourly throughput.
| Vessel Vol. | 0.04 – 1 m³ (slave); master sized to application |
| Pressure | 3.5 bar gauge |
| Capacity | 1 – 50 TPH |
| Distance | 0.1 – 0.5 km |
| Application | Fly ash collection in thermal power plants; multi-field ESP dust collection in cement and steel plants |
Configuration 2.2
Stand-Alone Vessel Conveying
A pneumatic vertical lift for elevating bulk powder within a plant structure — from ground-level receipt to elevated process or storage. Achieves high instantaneous conveying rates over short vertical distances where a conventional dense phase pipeline would be impractical due to elevation or space constraints.
| Vessel Vol. | 0.5 – 10 m³ |
| Pressure | 3.5 bar gauge |
| Capacity | 1 – 150 TPH |
| Distance | 0.1 – 1.0 km |
| Application | Silo filling, batch process feed, single-point transfer |
Configuration 2.3
Series (Master-Slave) Vessel Conveying

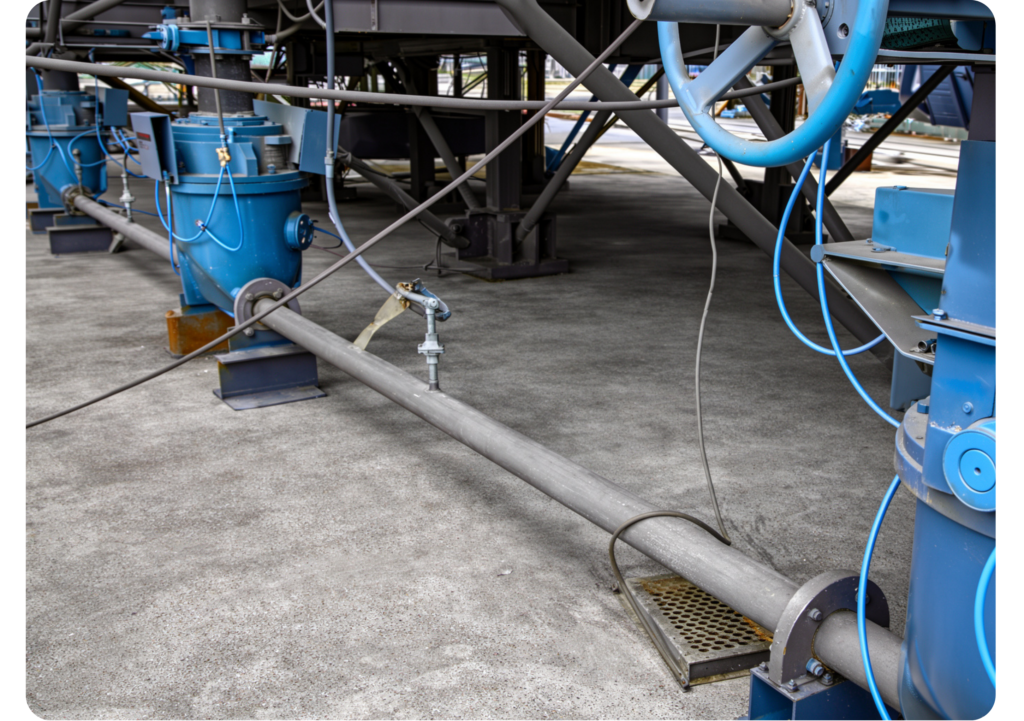

Multiple small secondary (slave) vessels sit directly beneath individual ESP or bag filter hopper outlets. Each slave vessel discharges into a common master pressure vessel, which conveys the consolidated material batch to the receiving silo. Enables collection from up to 20+ sources on a single conveying line — eliminating separate conveying infrastructure per hopper.
| Vessel Vol. | 0.04 – 1 m³ (slave); master sized to application |
| Pressure | 3.5 bar gauge |
| Capacity | 1 – 50 TPH |
| Distance | 0.1 – 0.5 km |
| Application | Fly ash collection in thermal power plants; multi-field ESP dust collection in cement and steel plants |
Configuration 2.4
Air Lift System
A pneumatic vertical lift for elevating bulk powder within a plant structure — from ground-level receipt to elevated process or storage. Achieves high instantaneous conveying rates over short vertical distances where a conventional dense phase pipeline would be impractical due to elevation or space constraints.
| Vessel Vol. | 0.04 – 1 m³ (slave); master sized to application |
| Pressure | 3.5 bar gauge |
| Capacity | 1 – 50 TPH |
| Distance | 0.1 – 0.5 km |
| Application | Fly ash collection in thermal power plants; multi-field ESP dust collection in cement and steel plants |
STAG AG Exclusive Technology · Pipe-in-Pipe
2.5 Pipe-in-Pipe Technology — Specialist Long-Distance Pipeline Design
Developed by STAG AG Switzerland, the Pipe-in-Pipe design addresses the primary failure mode of long horizontal dense phase pipelines: plug collapse and blockage. An inner perforated pipe sits concentrically within the outer conveying pipe. Controlled air injection through the perforations prevents plug degeneration on extended horizontal runs — maintaining stable dense phase flow where conventional single-pipe designs would fail.
- Prevents plug collapse and blockage on extended horizontal runs
- Reduces compressor capacity requirement — lower capital and operating cost
- Applicable to horizontal pipeline sections; standard bends and fittings at direction changes
- Pipe-in-Pipe modules are field-interchangeable within the standard conveying pipeline
STAG AG reports approximately 15–20% reduction in conveying air consumption versus conventional dense phase pipelines using this design. Lower air demand directly reduces compressor selection and operating cost over system lifetime.
- 3. System Components & Engineering Specifications
An integrated assembly of pressure-rated and process-critical components.
A dense phase conveying system is an integrated assembly of pressure-rated and process-critical components. Each element must be correctly specified for material compatibility, operating pressure, and the conveying duty — system reliability depends on the whole assembly, not individual components.
| Component | Engineering Function | Key Specification Parameters |
|---|---|---|
| Pressure Vessel (Blow Tank) | Receives, seals, pressurises, and discharges bulk material into the conveying pipeline | Volume (m³), design pressure (bar g), vessel code compliance, cone angle, discharge valve type, aeration provision |
| Conveying Pipeline | Enclosed transfer path — vessel discharge to receiving point | Bore (mm), wall thickness, material grade (carbon steel / hardened / ceramic-lined bends), bend radius, expansion provisions |
| Screw Compressor / Air Supply | Delivers compressed air at required pressure and flow rate | Delivery pressure (bar g), FAD (m³/min), dewpoint (°C PDP), oil-free or lubricated — per material quality requirements |
| Vessel Discharge Valve | Controls material entry into pipeline; seals against full vessel pressure | Bore, pressure rating, abrasion-resistant seat material, actuation type (pneumatic/electric) |
| Diverter Valve | Routes conveyed material to one of multiple receiving points at pipeline terminus | Number of outlets, bore, pressure rating, seat material, position feedback |
| Pressure Transmitters & Level Sensors | Monitor vessel and pipeline pressure, vessel fill level for cycle control and alarms | Pressure range, accuracy class, process connection, 4–20 mA / digital fieldbus output |
| PLC Control System | Manages fill–pressurise–discharge–depressurise cycle sequencing, interlocks, alarms, HMI | PLC platform, I/O count, HMI display, DCS/SCADA integration protocol |
| Receiving Silo / Filter Receiver | Terminal material storage; vent filter retains dust during discharge air venting | Capacity (m³), structural loading, vent filter type, filter cloth area (m²), differential pressure monitoring |
- 4. Industries & Process Applications
The standard enclosed bulk transfer method wherever abrasive, fine, or environmentally controlled dry powders must be moved reliably.
Dense phase pneumatic conveying is the standard enclosed bulk transfer method in industries where abrasive, fine, or environmentally controlled dry powders must be moved reliably over significant distances without particle degradation, spillage, or atmospheric release.
| Industry | Process Application | Dense Phase System Requirement |
|---|---|---|
| Thermal Power Plants | Fly ash transfer from ESP / bag filter hoppers to dry fly ash storage silos for road tanker or rail dispatch (IS 3812 Class C/F, d₅₀ typically 10–30 µm) | Series (Master-Slave) vessel for multi-hopper collection; Twin Tandem for high-volume silo-to-dispatch; 3.5 bar pressure; hardened pipeline bends |
| Cement Manufacturing | Raw meal to kiln feed silos; kiln feed to preheater tower (80–120 m vertical, 150–400 TPH depending on kiln capacity); finished cement OPC/PPC to storage silos | Twin Tandem vessel for continuous kiln feed; air dewpoint ≤ −20°C PDP; abrasion-resistant bends; long-distance Pipe-in-Pipe pipeline on extended horizontal runs |
| Integrated Steel Plants | Pulverised coal injection (PCI) into blast furnace at controlled rates; de-sulphurisation reagent injection into torpedo ladle; flux powder to converter | ATEX Zone 20/21 for coal handling; precision dosing control for injection applications; explosion relief on all receivers and vessels |
| Alumina Refineries | Calcined alumina to reduction pot lines in aluminium smelters; continuous feed requirement; Mohs 9 abrasion | Twin Tandem vessel for uninterrupted smelter feed; ceramic-lined bends at all direction changes; hardened discharge valves |
| Mineral Processing | Limestone powder for flue gas desulphurisation (FGD); gypsum from FGD units to storage; calcium carbonate and dolomite in process plants | Moderate abrasion; stable plug flow at standard operating pressure; standard hardened bends adequate |
| Carbon Black Production | Carbon black powder conveying from reactors to storage — extremely fine (d₅₀ 0.1–5 µm), low bulk density, electrostatic charge generation | Fully enclosed system; HEPA-grade filtration at all vent points; anti-static pipeline and earthing; controlled electrostatic management |
| Zinc & Non-Ferrous Smelting | Zinc oxide and metal oxide powder from furnace off-gas collection to storage or packaging; sub-micron particle fraction with health hazard classification | Fully enclosed, dust-tight system; sub-micron filter at all vent and receiver points; health hazard classification drives sealed design |
| System requirements reflect established engineering practice for these industry applications. All installations are engineered to site-specific material characterisation and throughput data. | ||
- 5. Multimodal Integration
End-to-end bulk material logistics — one engineered system chain.
In-plant dense phase conveying functions as the central transfer element within a complete bulk material logistics chain. SaveEco engineers dense phase systems as the in-plant transfer spine, with multimodal unloading infrastructure at the upstream interface. The complete system is designed, supplied, installed, and commissioned by SaveEco as a single-partner scope.
Road Bulker Unloading
30 / 50 / 70 m³ tankers; 2 bar operating pressure. Tanker pneumatically discharges into receiving hopper; dense phase vessel transfers to silo filling.
Rail Wagon Unloading
60 m³ wagons; air fluidisation for bottom discharge. Fluidised wagon discharge into receiving hopper; dense phase transfer to storage silo at rated capacity.
Ship Transfer — Bulk Carrier
Up to 30,000 m³ vessel capacity; pneumatic ship unloader. Shore-side dense phase transfers from ship unloader pipeline to port silo at up to 500 TPH.
Tank Container / ISO Tank
25 – 30 m³ intermodal containers; integral air fluidisation. Container discharges pneumatically; dense phase onward transfer to process or storage.
ESP / Bag Filter Hopper
Multiple ESP fields or bag filter compartments in power, cement, or steel plants. Series (Master-Slave) vessels collect from each hopper; master vessel conveys consolidated batch to silo.
Single-partner scope: SaveEco designs, supplies, installs, and commissions the complete material handling chain — from unloading station through in-plant dense phase transfer to receiving silo — as a single engineered system with one point of accountability.
- 6. Frequently Asked Questions
Common questions about dense phase conveying systems.
Dense Phase Pneumatic Conveying is a pressure-driven bulk material transfer method in which material moves through the pipeline at relatively low velocities with a high solids-to-air loading ratio. Unlike dilute (lean) phase systems that suspend individual particles in a high-velocity air stream, dense phase conveying transports material in compact slugs or plugs — a flow regime commonly described as plug flow or slug flow. Material is loaded into a sealed pressure vessel (blow tank) which is then pressurised by compressed air. Controlled discharge valves release the material into the conveying pipeline in discrete batches or in a continuous metered flow. The air-to-material ratio is carefully managed: enough air to maintain flow without fluidising the entire pipeline cross-section into suspension. This controlled regime distinguishes dense phase conveying from both dilute pneumatic systems and mechanical conveying, making it especially suited to fine, abrasive, or friable bulk powders where high conveying velocities would cause excessive pipeline erosion, unacceptable product degradation, or dust generation.
The fundamental difference is the flow regime. Dense phase transports material as discrete slugs or plugs at low velocity (1–6 m/s) under higher pressure (up to 3.5 bar), while dilute phase suspends individual particles in a high-velocity air stream (18–30 m/s) at low pressure. Dense phase causes substantially less pipeline wear, produces minimal particle degradation, consumes less air per tonne conveyed, and achieves transfer distances up to 1.6 km. Dilute phase is simpler and lower in capital cost but unsuitable for abrasive, friable, or long-distance applications.
SaveEco / STAG AG dense phase systems operate at up to 3.5 bar gauge. The actual design pressure for a given installation is determined by pipeline length, bore, number of direction changes, material properties, and required throughput. All pressure vessels are designed and pressure-tested to applicable industrial pressure vessel standards.
Twin Tandem and Stand-Alone vessel systems achieve up to 1.6 km and 1.0 km respectively. Series (Master-Slave) systems cover up to 0.5 km. Air Lift handles vertical or short horizontal runs up to 100 m. The Pipe-in-Pipe pipeline design extends reliable operation on long horizontal runs while reducing compressor sizing requirements.
Dense phase is suited to dry, fine-particle bulk powders — particularly those that are abrasive, friable, or subject to environmental controls. Established applications include fly ash (Class C and F), Portland cement (OPC/PPC), limestone powder, calcined alumina, pulverised coal, gypsum, carbon black, and zinc oxide. Material suitability is confirmed through particle size analysis, bulk density, moisture content, and angle of repose assessment.
Fly ash from ESPs and bag filters is fine (typically 10–30 µm d₅₀ for Class F per IS 3812), moderately abrasive, and must be transferred over 200 m to over 1 km in large plant layouts. At dilute phase velocities (18–30 m/s), pipeline bends would erode rapidly due to particle hardness and high-velocity impact. Dense phase at 1–4 m/s reduces wear to manageable levels, transfers ash as a high-density slug, and maintains a fully sealed system with no dust re-entrainment.
Dense phase systems require compressed air at the design operating pressure — typically from a dedicated oil-free or oil-injected screw compressor. Air must be treated to the required dewpoint (typically ≤ −20°C PDP for hygroscopic materials such as cement and gypsum). Volumetric air demand is calculated during system engineering based on vessel size, cycle time, and pipeline sizing.
Pipe-in-Pipe is a STAG AG pipeline design in which an inner perforated pipe sits concentrically within the outer conveying pipe. Controlled air injection through the inner pipe's perforations sustains plug integrity along the full pipeline length, preventing the plug collapse and blockage that occur on long horizontal runs. STAG AG reports approximately 15–20% reduction in air consumption versus conventional dense phase pipelines. It is specified where standard single-pipe design would require compressor oversizing or carry elevated blockage risk.
The conveying pipeline contains no moving parts and requires only periodic visual inspection. Maintenance is concentrated on: (1) vessel discharge valve and diverter valve seats — inspection interval set by material abrasiveness; (2) compressor servicing per manufacturer schedule; (3) silo vent filter bag replacement, triggered by differential pressure monitoring. This maintenance profile is significantly lower than mechanical conveyors such as screw conveyors, bucket elevators, or drag chains.
SaveEco provides fully engineered turnkey solutions — covering material characterisation, system sizing, equipment supply (STAG AG technology), pipeline fabrication and installation, civil interface, electrical and PLC/HMI automation, commissioning, performance testing, operator training, and after-sales support. Applicable to both greenfield and brownfield installations. Dense phase systems are also integrated with upstream road bulker, rail wagon, ship transfer, and tank container unloading as part of complete bulk material logistics solutions.
